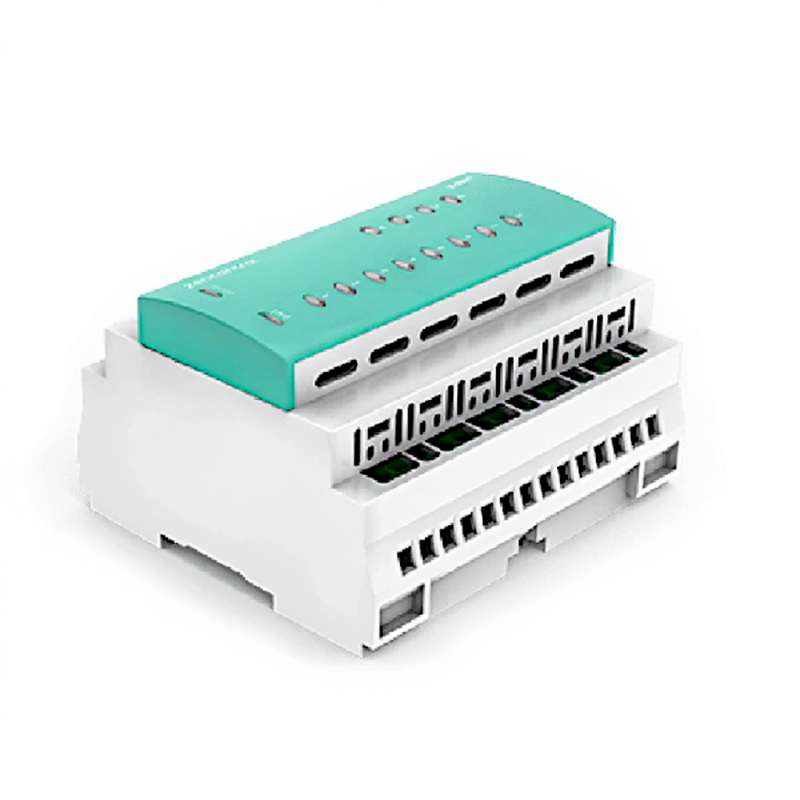

ZENCONTROL relay module 4x10A and 8 in/out

Name: ZENCONTROL relay module 4x10A and 8 in/out
Brand: ZENCONTROL
SKU: ZENCONTROL moduł przekaźnikowy 4x10A i 8 in/out
Price: 293.22 EUR
Availability: InStock

293.22 €

Quantity

Product available

Availability: 2-5 days

Do you need help or details about our offer?
Call us (+48) 694-000-777, (+48) 799-220-777
between 8 a.m. - 5 p.m. or Mail to us
We respond to e-mails between 8:00 and 23:00
flight We deliver shipments using Fedex or DPD
place There is a possibility of personal collection
check_circle_outline prepayment foreign - 25euro, in Poland 20pln
info For orders over PLN 1000pln, delivery in Poland is FREE

Universal DALI input/output device. Includes four 10A 230V relays and eight programmable inputs/outputs. It also features wireless communication via Thread®.

Technical specifications:

4x relay outputs 10A/492A (1.5ms) start-up (IEC62386-208)
8x 0-10V/1-10V 5mA outputs (IEC62386-205) DT5 or 8x digital switch/sensor inputs (IEC62386-301/302/303)
One address - 12 instances (4x DT7, 8x DC out or push button or absolute input or occupancy sensor).
Maximum output current 0-10V/1-10V 5mA
Remote upgrade
For panel mounting on a standard DIN rail
Reinforced isolation between DALI and mains
DALI surge protection
LED indicators for power and bus status
Manual override option Relay and input control
Control system: Wired DALI-2 or wireless IEC62386-104 via Thread®
Radio support: IEEE 802.15.4
Frequency band: 2.4 GHz
Maximum radio transmission power: +8 dBm
DALI bus current: 2 mA

Reference: ZENCONTROL moduł przekaźnikowy 4x10A i 8 in/out
