ZENCONTROL router controller DALI-2 driver

Name: ZENCONTROL router controller DALI-2 driver
Brand: ZENCONTROL
SKU: ZENCONTROL router kontroler sterownik DALI-2
Availability: InStock

0.00 €

PRICE AFTER AGREEING WITH THE STORE

Quantity

Product available

Availability: 2-5 days

Do you need help or details about our offer?
Call us (+48) 694-000-777, (+48) 799-220-777
between 8 a.m. - 5 p.m. or Mail to us
We respond to e-mails between 8:00 and 23:00
flight We deliver shipments using Fedex or DPD
place There is a possibility of personal collection
check_circle_outline prepayment foreign - 25euro, in Poland 20pln
info For orders over PLN 1000pln, delivery in Poland is FREE

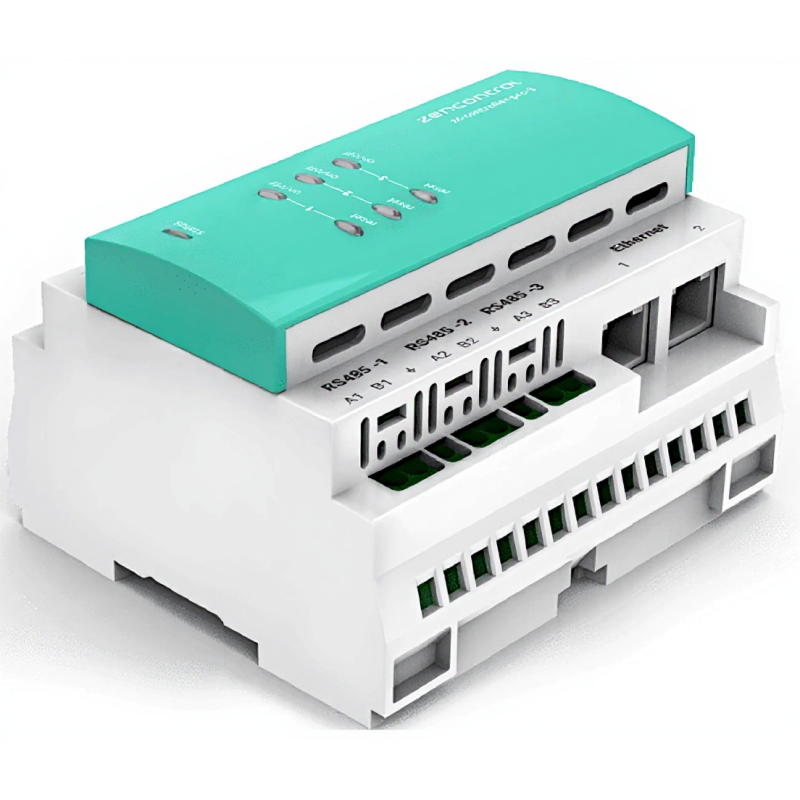

The zc-controller-pro-3 DALI-2 Router and Application Controller is an intelligent control unit for creating DALI-2 bus connections. The controller supports three DALI buses. It manages the entire lighting system and allows for the expansion of the network by controlling commands between system components on the bus. The integrated Ethernet gateway allows for programming the controller via the cloud and connecting with other controllers, creating a comprehensive control system. Once programmed, the controller can be disconnected from the internet.

Technical Specifications:

DALI-2 compliant application controller
See DALI-2 certification
Compliant with IEC 62386-103 Ed 2.0
Compatible with DALI devices
LED system status indicators
2 mA bus current consumption
Reinforced isolation between DALI, mains power, and Ethernet
Compatible with 10/100 TCP/IP Ethernet standard switches and IT equipment
Two RJ45 sockets
For panel mounting on a standard DIN rail
Three DALI-2 buses for up to 64 devices plus 63 control devices per bus
Supports up to 256 instances per bus
Three RS485 ports
Automatic DALI scanning for device changes
Requires external DALI zc-psu power supplies
Cloud programming (cost-effective, flexible, scalable)
Real-time and astronomical clocks
Built-in Schedule
Logical sequences
Simple constant light system configuration (reflected or external light)
Color control in Tc and RGBWAF modes
Visualization and Android apps (.json)
Optional UDP, BACnet, Somfy, DMX, and MQTT integration (additional fee)

Reference: ZENCONTROL router kontroler sterownik DALI-2

Producent:	ZENCONTROL
